Imagine the frustration of losing your car keys and discovering that a simple replacement just won't work. Car keys have evolved significantly from simple mechanical cut keys to sophisticated electronic devices. The small, humble transponder chip — now embedded in many modern car keys — has revolutionized vehicle security, providing a considerable deterrent against car theft.
A transponder chip in a car key is a small electronic device that transmits a unique signal to the car's ignition system, ensuring that only the correctly programmed key can start the vehicle. These chips were introduced in the 1990s in response to a rising number of car thefts. The primary function of a transponder chip is to provide an extra layer of security for vehicles.
Communication Between the Key and the Car: When you insert your transponder key into the car's ignition switch and turn it to the ON position, the car’s engine control unit (ECU) sends out a signal that is picked up by the transponder chip embedded in the key. The chip then emits a unique signal back to the ECU. If the ECU recognizes the signal, it allows the engine to start.
Chip Programming: Each transponder chip is uniquely programmed, making it extremely difficult for unauthorized persons to duplicate or manipulate it. The unique codes are programmed at the factory and synced with the car’s ECM (Engine Control Module).
Encryption: Following the initial authentication, the communication between the key and ECU may be encrypted, adding an additional layer of security. Without the right code, the car simply won't start, even if someone tries to bypass the mechanical ignition switch.
Fail-safe Mode: Many transponder systems feature a fail-safe mode where the car will not start or may cut off the fuel supply to prevent theft if the signal from the transponder chip is not recognized. This mechanism is often known as an immobilizer system.
Battery-Free Operation: Most transponder chips are passive electronics, meaning they do not require their own power source to work. Instead, they draw tiny amounts of electricity from the car’s immobilizer system, which creates an induction loop around the ignition lock.
Basic Transponder Keys: These keys look like regular car keys but contain a hidden chip that communicates with the car's ECU. They require insertion into the ignition for the transponder to make contact.
Remote Keys: These are transponder keys with remote management technologies built in. They allow for remote locking/unlocking of the car and may come with features like trunk opening and panic buttons.

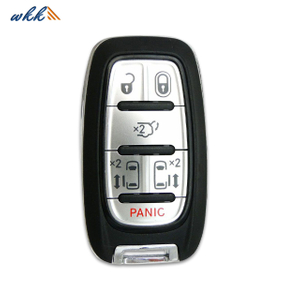

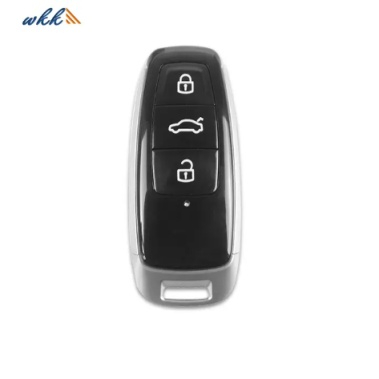

Smart Keys: Also known as proximity keys, smart keys allow drivers to start and stop their car with the push of a button as long as the key fob is within a certain range. The car’s sensors communicate wirelessly with the transponder chip in the key fob.
Flip Keys: These unique keys have a transponder chip integrated within a foldable mechanism. They are compact and easy to carry.
Enhanced Security: The primary advantage of using transponder chips in car keys is enhanced security. The likelihood of car theft is significantly reduced due to the unique, encrypted communication between the chip and the car’s ECU.
Convenience: Transponder keys add a level of convenience through remote locking/unlocking and sometimes even push-to-start features. Smart keys, in particular, allow for quick and easy access to your vehicle without even taking the key out of your pocket.
Reduction in Car Theft: According to several reports, the introduction of transponder keys has led to a significant reduction in car theft rates worldwide. The complexity involved in hacking into or duplicating a transponder key adds a substantial deterrent.
Technological Integration: Modern transponder keys often come integrated with other advanced technologies like GPS, Bluetooth, and additional security features, making your driving experience more seamless and enjoyable.
Cost: Transponder keys are more expensive to replace and program compared to traditional keys. In case of loss or damage, a new key has to be purchased and programmed specifically for your vehicle, which can be pricey.
Technical Issues: Occasionally, technical issues can make it difficult for the transponder chip to communicate with the car’s ECU, preventing the vehicle from starting. These issues often require professional diagnostics and repair.
Battery Dependency: For remote and smart keys, the integrated battery must be replaced periodically. Failure to maintain the battery can result in the key being unable to communicate with your car.
In summary, transponder chips have transformed the way we think about car security. By providing an additional layer of encrypted communication between the key and the vehicle, these small electronic chips have significantly reduced car thefts and added convenience for vehicle owners. However, the enhanced security and convenience come at a higher cost and the potential for technical issues.
What happens if I lose my transponder key? Losing a transponder key often necessitates a visit to the dealership or a locksmith to get a new key programmed specifically for your vehicle.
Can a car run without a transponder chip? Most modern cars equipped with a transponder chip cannot run without recognizing the specific signal from the chip.
How can I tell if my car key has a transponder chip? A sure sign is if your car key has a plastic head; another way is to consult your car's manual or contact the manufacturer.
Can transponder chips be duplicated? While possible, duplicating a transponder chip requires specialized equipment and software, making it difficult and expensive.
Do transponder chips require batteries? Most transponder chips themselves do not require batteries; however, remote keys and smart key fobs do use batteries for additional functions like remote locking/unlocking.
